products
Axial sealing metal C-ring



Corresponding instructions:

Applicable to high temperature and high pressure and strong corrosion conditions, the maximum working temperature is 760 degrees Celsius, and the highest working medium pressure is 400Mpa. Leakage rate can reach 1*10-10CM3/S


Specific content:

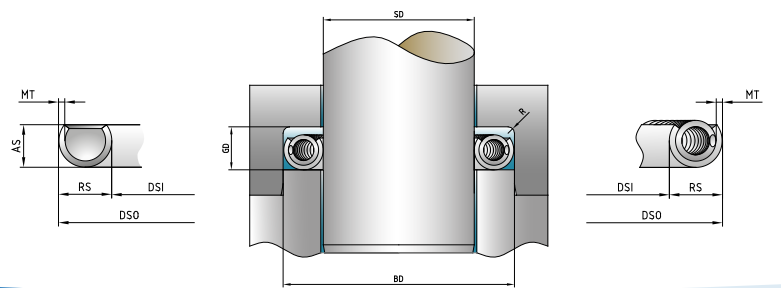

Assembly drawing




Seal for the circumferential surface of low speed or linear reciprocating motion.


Working conditions:

Working pressure range: vacuum --- 400MPA

Operating temperature range: -200 ° C - 760 ° C

Typical leak rate: 1*10-10CM3/S


Optional metal material:

SUS321 stainless steel

SUS316L stainless steel

Inconel (718)

Inconel (750)


Optional plating:

silver (AG), tin (Sn), nickel (Ni), gold (Au), polytetrafluoroethylene (F4) and so on.

See the relevant groove size for details--"Website Download"
